促銷價$999.00
保養期：3年

貨號：MB-BB55TMV

網站：瀏覽官方網站

TUF GAMING B550M-PLUS (WI-FI)

AMD B550 (Ryzen AM4) micro ATX電競主機板搭載 PCIe 4.0、雙 M.2、10 DrMOS 功率級、Intel® WiFi 6、2.5 Gb 乙太網路、HDMI、DisplayPort、SATA 6 Gbps、USB 3.2 Gen 2 Type-A 和 Type-C，以及 Aura Sync RGB 燈光效果支援



  • AMD AM4 插槽： 支援第 3 代 AMD Ryzen™ 處理器
  • 增強型電源解決方案： 8+2 DrMOS 功率級、ProCool 連接器、軍規級 TUF 組件及 Digi+ VRM 以發揮最高耐用性
  • 全方位散熱：VRM 散熱器、PCH 無風扇散熱器、M.2 散熱器、混合式風扇接頭及 Fan Xpert 2+ 公用程式
  • 新世代連線功能：PCIe 4.0 M.2、USB 3.2 Gen 2 Type-A 及 Type-C 支援
  • 專為線上遊戲打造：Intel® WiFi 6、2.5 Gb 乙太網路、TUF LANGuard 及 TurboLAN 技術
  • AI 降噪麥克風：提供極為清晰度遊戲內語音通訊

    耐用。穩定。可靠。

    TUF Gaming B550M-Plus (Wi-Fi) 可發揮最新 AMD 平台的重要元素，並結合適合電競的功能與通過考驗的耐用性。這些主板採用軍規級組件、升級的電源解決方案及全方位的散熱選項，可提供堅如磐石的效能及優異的遊戲穩定性。

    當您使用 TUF Gaming 主機板打造電腦時，也將獲益於 TUF Gaming Alliance，亦即 ASUS 與可靠的業界夥伴的合作關係，它可確保讓組裝電腦更容易、最佳相容性，以及從組件到機殼的整體美學。

  • CPU

    AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors *

    * Refer to www.asus.com for CPU support list

    晶片組

    AMD B550

    系統記憶體

    AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

    4 x DIMM, Max. 128GB, DDR4 4600(O.C)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

    AMD Ryzen™ 4000 G-Series Desktop Processors

    4 x DIMM, Max. 128GB, DDR4 4800(O.C.)/4600(O.C)/4466(O.C.)/4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory *

    Dual Channel Memory Architecture

    ECC Memory (ECC mode) support varies by CPU.

    * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

    顯示晶片

    1 x DisplayPort 1.2

    1 x HDMI 2.1(4K@60HZ)

    *Graphics specifications may vary between CPU types.

    Multi-GPU Support

    Supports AMD 2-Way CrossFireX Technology

    擴充槽

    AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

    1 x PCIe 4.0 x16 (x16 mode)

    AMD Ryzen™ 4000 G-Series Desktop Processors

    1 x PCIe 3.0 x16 (x16 mode)

    AMD B550 Chipset

    1 x PCIe 3.0 x16 (x4 mode) *1

    1 x PCIe 3.0 x1 *1

    * Support PCIe bifurcation for RAID on CPU function.

    儲存裝置

    Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports

    AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 4.0 x4 and SATA modes) storage devices support

    AMD Ryzen™ 4000 G-Series Desktop Processors :

    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support

    AMD B550 Chipset :

    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support

    4 x SATA 6Gb/s port(s),

    Support Raid 0, 1, 10

    LAN

    Realtek RTL8125B 2.5Gb Ethernet

    TUF LANGuard

    無線資料網路

    Intel® Wi-Fi 6 AX200

    2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO

    Supports up to 2.4Gbps max data rate

    Supports dual band frequency 2.4/5 GHz

    Supports channel bandwidth: HT20/HT40/HT80/HT160

    Supports PCIe interface

    Bluetooth

    Bluetooth v5.1*

    *BT 5.1 function will be ready in Windows 10 build 19041 or later.

    音效

    Realtek ALC S1200A 7.1 Surround Sound High Definition Audio CODEC

    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback

    Audio Feature :

    - Exclusive DTS Custom for GAMING Headsets.

    - Optical S/PDIF out port(s) at back panel

    - Audio cover

    - Audio Shielding

    - Dedicated audio PCB layers

    - Premium Japanese audio capacitors

    USB Ports

    Rear USB Port ( Total 8 )

    2 x USB 3.2 Gen 2 port(s)(1 x Type-A +1 x USB Type-C®)

    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)

    2 x USB 2.0 port(s)(2 x Type-A)

    Front USB Port ( Total 6 )

    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)

    4 x USB 2.0 port(s)(4 x Type-A)

    Software Features

    ASUS Exclusive Software

    Armoury Crate

    - Aura Creator

    - Aura Sync

    - AI Noise Cancelling Microphone

    AI Suite 3

    - Performance And Power Saving Utility

    TurboV EVO

    EPU

    Digi+ VRM

    Fan Xpert 2+

    - EZ update

    TUF GAMING CPU-Z

    AI Charger

    ASUS Turbo LAN

    DAEMON Tools

    DTS Custom for GAMING Headsets

    Norton Anti-virus software (Free Trial for 60 days)

    WinRAR

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode

    ASUS Special Features

    ASUS TUF PROTECTION

    - ASUS DIGI+ VRM (Digital power design with Dr. MOS)

    - ASUS Enhanced DRAM Overcurrent Protection

    - ASUS ESD Guards

    - TUF LANGuard

    - ASUS Overvoltage Protection

    - ASUS SafeSlot

    - ASUS Stainless-Steel Back I/O

    ASUS Q-Design

    - ASUS Q-DIMM

    - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    - ASUS Q-Slot

    ASUS Thermal Solution

    - Aluminum M.2 heatsink

    ASUS EZ DIY

    - BIOS FlashBack™ button

    - BIOS FlashBack™ LED

    - Procool

    AURA Sync

    - Standard RGB headers

    - Addressable Gen 2 RGB header

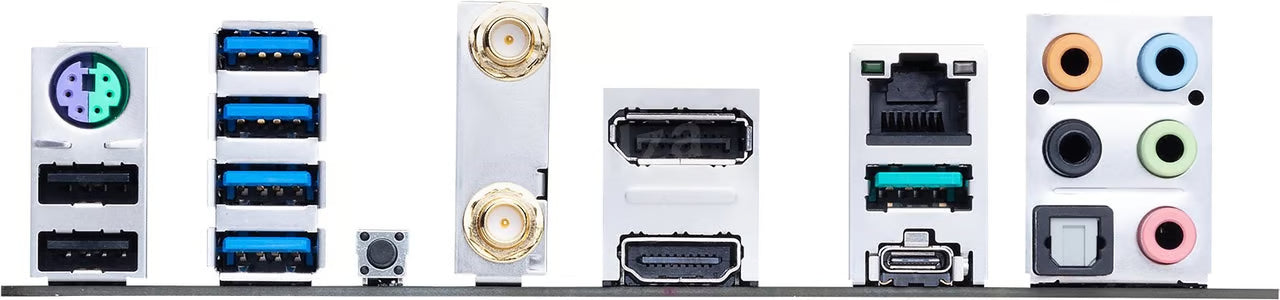

    背板 I/O 埠

    1 x PS/2 keyboard/mouse combo port(s)

    1 x DisplayPort

    1 x HDMI

    1 x LAN (2.5G) port(s)

    2 x USB 3.2 Gen 2 (teal blue) (1 x Type-A+1 x USB Type-C®)

    2 x USB 2.0

    4 x USB 3.2 Gen 1 (blue) (one port can be switched to USB BIOS FlashBack™)

    1 x Optical S/PDIF out

    5 x Audio jack(s)

    1 x BIOS FlashBack™ Button(s)

    1 x ASUS Wi-Fi Module

    Internal I/O

    1 x CPU Fan connector(s)

    1 x CPU OPT Fan connector(s)

    2 x Chassis Fan connector(s)

    2 x Aura RGB Strip Headers

    1 x Addressable Gen 2 header(s)

    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)

    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)

    1 x M.2 Socket 3 with M Key, type 2242/2260/2280 storage devices support (SATA mode & X4 PCIE mode)

    1 x M.2 Socket 3 with M Key, type 2242/2260/2280/22110 storage devices support (SATA mode & X4 PCIE mode)

    1 x SPI TPM header

    4 x SATA 6Gb/s connector(s)

    1 x 24-pin EATX Power connector(s)

    1 x 8-pin EATX 12V Power connectors

    1 x Front panel audio connector(s) (AAFP)

    1 x Clear CMOS jumper(s)

    1 x System panel connector

    1 x COM port header

    1 x Speaker connector

    配件

    User´s manual

    I/O Shield

    2 x SATA 6Gb/s cable(s)

    1 x Supporting DVD

    1 x TUF Gaming Sticker

    1 x TUF Certification card(s)

    1 x Wi-Fi moving antenna

    1 x M.2 SSD screw package(s)

    1 x M.2 Rubber Package(s)

    BIOS

    256 Mb Flash ROM, UEFI AMI BIOS

    管理能力

    WOL by PXE

    作業系統

    Windows® 10 64-bit

    主機板尺寸

    mATX Form Factor

    9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )

    備註

    *1 PCIEX16_2 will run x2 mode when PCIEX1 is used.
